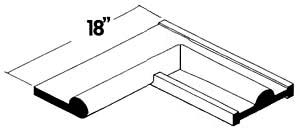

CENTER DOME SEAL 6809 — TRANSITION TO FLAT INSIDE BULB 90⁰ CORNER

  • Center Dome Seal 6809 — Transition to Flat Inside Bulb 90⁰ Corner
  • Center Dome Seal 6809 — Transition to Flat Inside Bulb 90⁰ Corner
Match A-Height for both parts for proper seal alignment (use a 2" Bulb and Tail with the 1-15/16" Dome Seal). Identify as a fully molded seal. Include material requirements. Specify cladding thickness and degree of coverage as required.
ABCDEFGR1R2
1-3/4" 5-5/8" 5/8" 1" 5/16" 1/2" 1/4" 11/16" 9/16"
1-3/4" 6-1/4" 7/16" 3/4" 1/8" 9/16" 3/32" 7/8" 3/8"
1-15/16" 5-5/8" 5/8" 1-3/16" 5/16" 11/16" 1/4" 11/16" 9/16"
XX XX XX XX XX XX XX XX XX
XX = Custom/Required Size


Solid Bulb & Tail

Solid Bulb Tail

ABCR
1-3/4" 7"** 9/16" 5/16"
2" 7"** 3/4" 1/4"
XX XX XX XX
XX = Custom/Required Size
** Can be made smaller
