CENTER DOME SEAL 6438 — FLAT 90⁰ CORNER

  • Center Dome Seal 6438 — Flat 90⁰ Corner

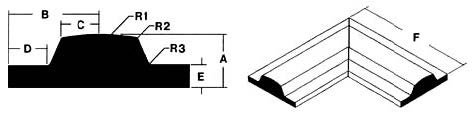

A-Height x B-Center Line Width x C-Center Line Dome Width x D-Tail Width x E-Tail Thickness x F-Legs Length x R1-Dome x R2-Radius x R3-Radius to Compound. Identify seal as a fully molded profile. Include material requirements. Specify cladding thickness and degree of coverage as required. Hollow sections in the base or core can be applied to this profile. Specify opening size, placement, and configuration.
ABCDEFR1R2R3
1-1/4" 4" 1" 1-1/2" 1/2" 24" Flat 1" 1/2"
1-1/2" 4-1/2" 1-5/8" 2-1/2" 1" 24" Flat 1/16" 1/16"
1-7/8" 2-3/8" 1/4" 1-1/8" 7/8" 24" Flat 3/4" 1/4"
2-1/4" 3" 7/8" 1-1/2" 1" 24" 4-5/8" 5/8" 1/8"
2-1/4" 5" 2" 2-1/4" 5/8" 24" 8" 1/4" 1/4"
2-3/8" 5" 2" 2-1/4" 3/4" 24" 8" 1/4" 1/4"
2-3/4" 3-15/16" 1-11/16" 2" 1-1/2" 24" Flat 1/4" 1/4"
2-3/4" 5" 2" 2-1/4" 1-1/8" 24" 8" 1/4" 1/4"
XX XX XX XX XX XX XX XX XX
XX = Custom/Required Size
